Pharao’s Eye - Jon Svane

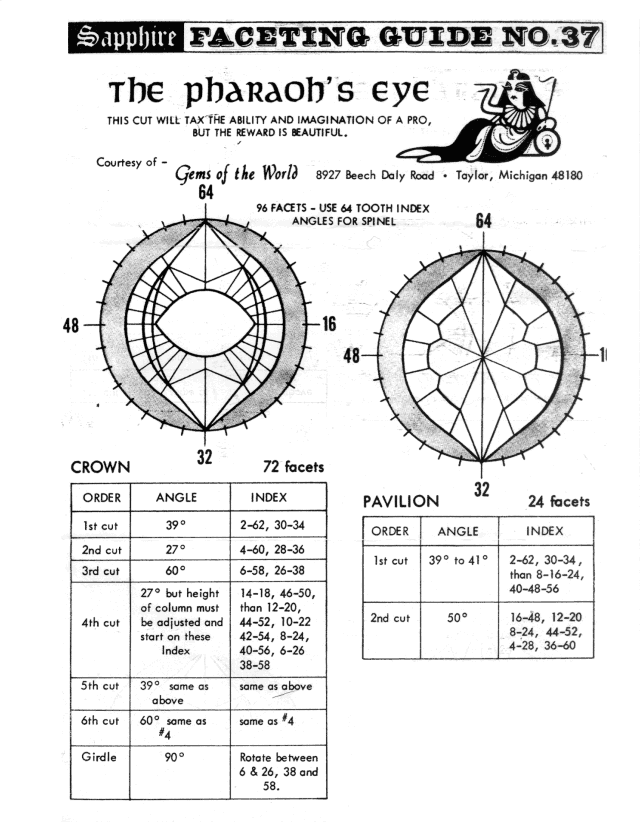

Original by "Gems of the World" in Facetiers Sapphire Faceting Guide - January 2019
Salvaged from Bob Keller's - "Bob's Rockshop" when it was accessible.

The original is handdrawn - with quite a lot artistic freedom.
Since the number of girdle facets on pavillion and crown is different - the girdle will bee uneven. If index 2 pavillion girdle facet and it's opponent crown facet is index 6, the girdle will eventually bee even more uneven. My take is, that the first girdle facet at the points must be index 6.
The eye shape of the Table will never be achieved with the described facet index'.
A few facets are repeated in the instructions - eg. Crown facet index 6 at 60 degrees

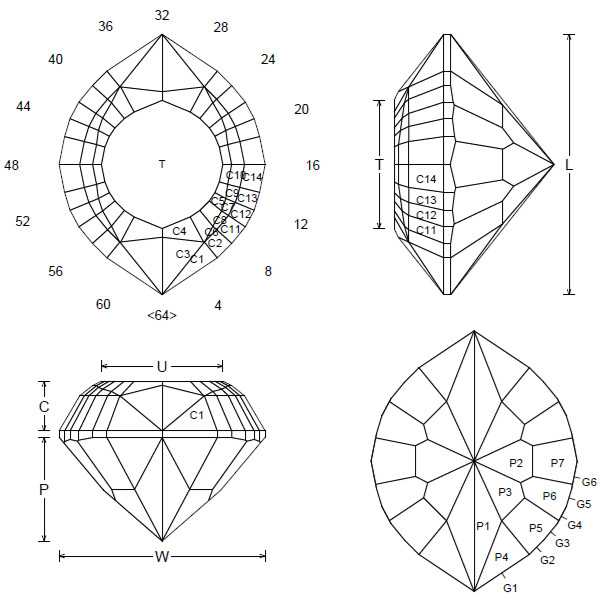

Facet Data
Pavilion facets	24	Pavilion tiers	7
Girdle facets	24	Girdle tiers	6
Crown facets	72+1	Crown tiers	14+1
Total facets	121	Total tiers	28
Size Data
L/W	1.264	P/W 0.504
H/W	0.776	C/W 0.241
V/W³	0.339	P/C 2.088
Design Data
Angles for R.I.			1.54
Symmetry		2-fold, mirror
Index gear			64

Comments

When doing this cut, start with the point at 64/32
Modified by Jon Olaf Svane January 2019

Pavilion			Crown
P1	39.00	02-30-34-62	C1	60.00	06-26-38-58
P2	41.00	16-48	C2	60.00	08-24-40-56
P3	40.00	08-24-40-56	C3	39.00	02-30-34-62
P4	50.00	06-26-38-58	C4	27.00	04-06-08-24-26-28-36-38-40-56-58-60
P5	50.00	08-24-40-56	C5	27.00	10-12-14-18-20-22-42-44-46-50-52-54
P6	50.00	12-20-44-52	C6	39.00	08-24-40-56
P7	50.00	16-48	C7	39.00	11-21-43-53
G1	90.00	06-26-38-58	C8	39.00	09-23-41-55
G2	90.00	08-24-40-56	C9	39.00	13-19-45-51
G3	90.00	09-23-41-55	C10	39.00	14-18-46-50
G4	90.00	11-21-43-53
G5	90.00	13-19-45-51
G6	90.00	14-18-46-50
